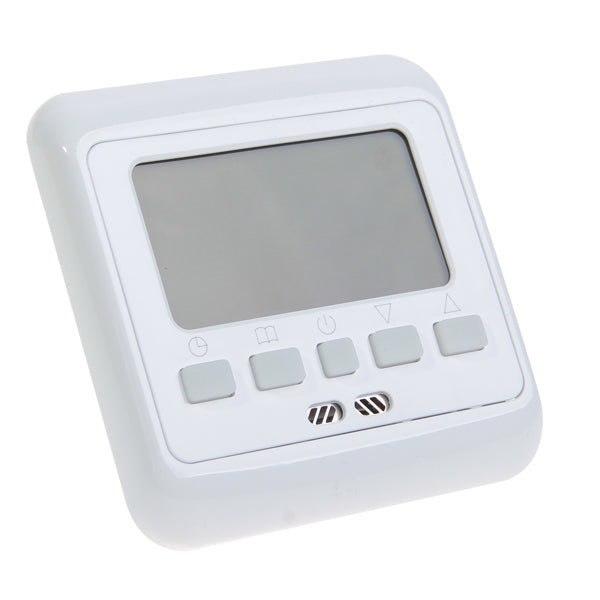

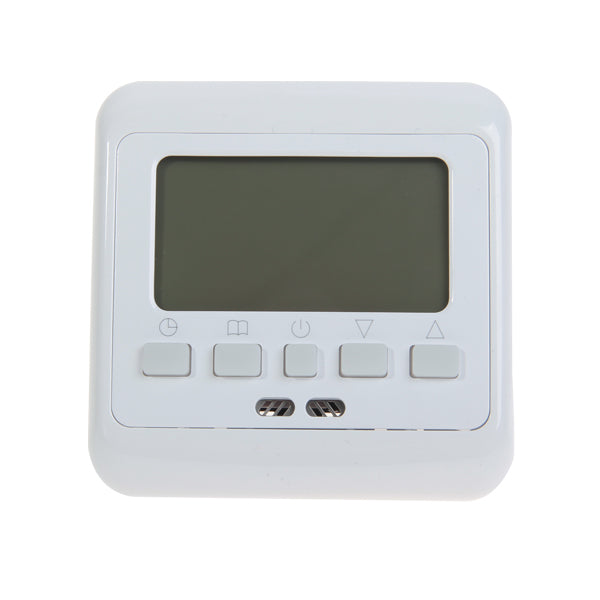

New Digital Thermostat Weekly Programmable 16A Floor Heating Thermostat Room Temperature Controller Thermometer

This Heating Thermostat with weekly programming adopts the latest single-chip computer

control technology. It has the high reliability and powerful anti-jamming. The application of

electric heating of the electric heating equipment and Water heating system of electric heating re

actuator control.

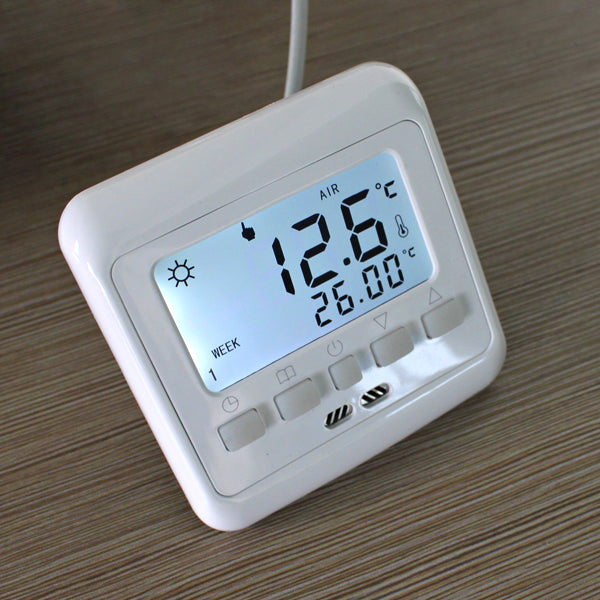

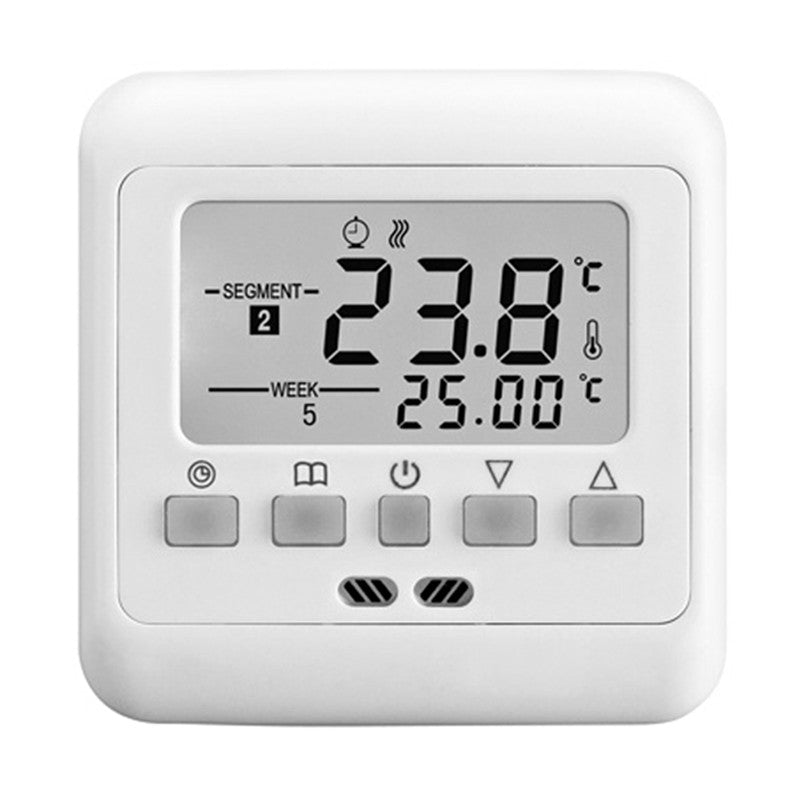

Large LCD display with White backlight
- Kinds of periods of time modes. 5+2 / 6+1 / 7days.
- Setting daily 6 periods of time and the setting temperature.
- Easy operation and utility, nice looking..
- The selection for manual control or automatic periods of time control.
- The clock continues when power fail and it won’t affect the period of time settings.
- Mini size junction box and suitable for the entire world.
- Flame retardant and safe and easy-cleaning.
- Come With 3M Extra sensor label.

- Power Supply: 60-230VAC ±10% 50/60 Hz
- Maximum switch power: 3600W.
- Maximum switch rating of 16A
- Internal sensor setting range: 5 - 35°C (programmable)
- Internal sensor measurement range: 0 - 40°C
- External sensor measurement range: 0 - 90°C
- Display Type: LCD screen, display area size: 60 x 45 mm
- Inside Sensor: NTC B=3380 10k @25degrees Celsius
- Extra Sensor: Length=3M NTC B=3380 10k @25degrees Celsius
- Setting Unit: 0.5°C / step
- Indication Accuracy: 0.1°C
- Certification: CE
- Inner Box Size : 100 x 100 x 60 mm
